OPTICAL:

• Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine

• LED Engine Life Rating: Approximately 50,000 hrs.

• CRI: >90

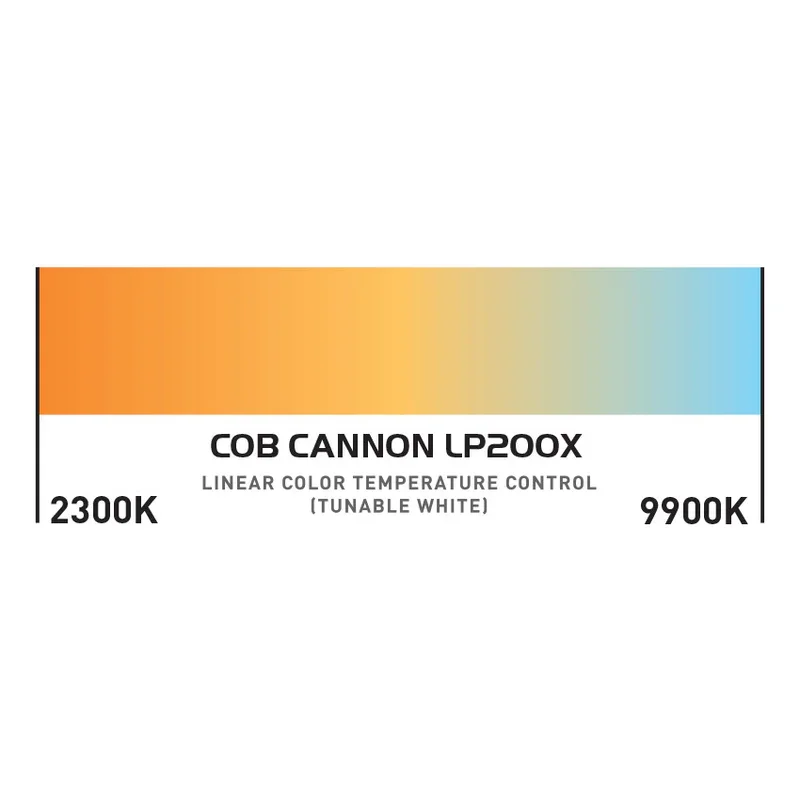

• Tunable White Color Temperature: 2300~9900K

• 80-degree beam angle

• Includes lens kit to change to 40-degrees or 50-degrees beam angle

FEATURES:

• Primary / Secondary Mode

• Flicker Free operation (No flickering on camera)

• Produces powerful, smooth RGBAL color mixing with

   rich palettes of color

• Scissor yoke allows fixture to be mounted on truss or

   set on the ground

• Optional Barn Doors (BAR001) sold separately

 CONTROL:

• 10 DMX Channel modes (5CH, 8CH-A, 8CH-B, 9CH, 10CH-A, 10CH-B, 12CH, 13CH, 16CH, 20CH)

• Linear color temperature control via DMX

• Built-in color temperature presets accessible via DMX

• 64 built-in color macros

• 4-button OLED digital DMX display on rear panel

• Compatible with the ADJ UC IR24 remote control (included)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• 6 selectable Dim Modes (Standard, Stage, TV,

   Architectural & Theatre)

• 4 selectable Dim Curves (Square, Linear, Inv. Squa & S.Curve)

• Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)

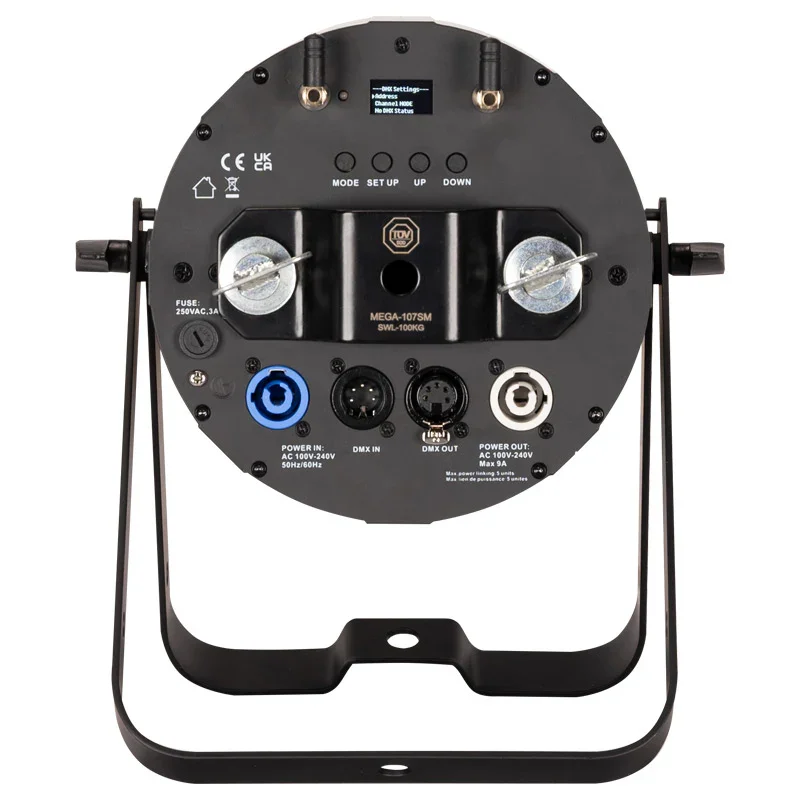

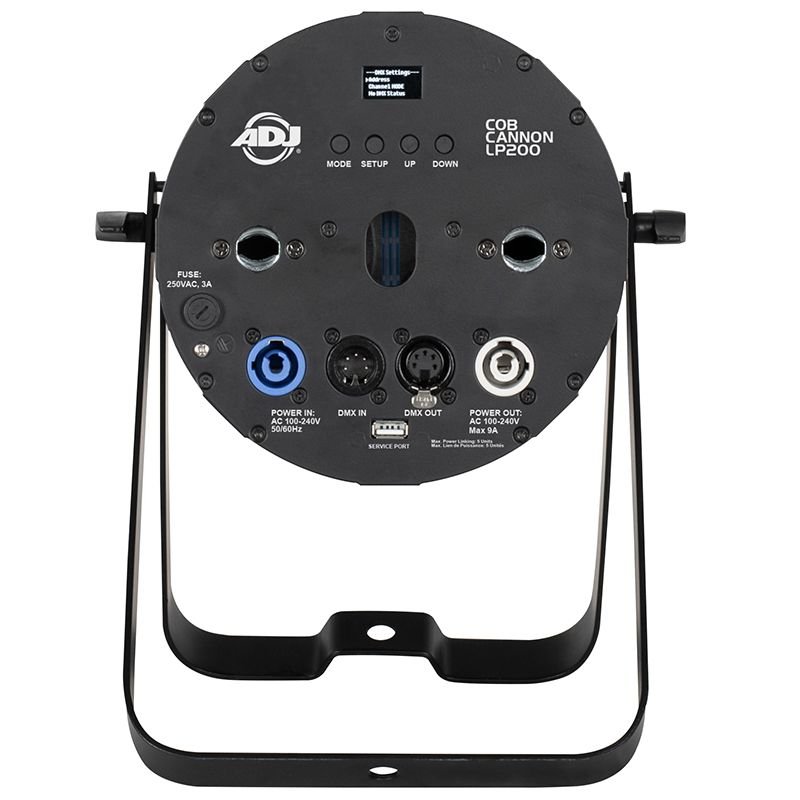

CONNECTIONS:

•  5-pin XLR connectors for DMX data linking

• Indoor locking power In & Out connections to daisy chain power

• USB Service Port

ELECTRICAL:

• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz

• Power Draw: 175W max

• Daisy chain up to 5 fixtures (120V) or 10 fixtures (230V) maximum

DIMENSIONS / WEIGHT:

• Dimensions (LxWxH): 16.25”x9.75”x7.5” / 415x245x192mm)

• Weight: 9.45 lbs. / 4.30 kg.

WHAT’S INCLUDED:

• (1) 50-degree lens

• (1) 40-degree lens

• UC-IR24 Wireless IR Remote

• Power Cord

• Scissor Yoke

• Omega Bracket

ACCESSORIES:

• BAR001 - COB Cannon Wash Barn Doors

RATING / APPROVALS:
