ElectraPix Bar 16 Pak Includes:

• (4) ElectraPix Bar 16 Pak (Fixtures)

• (1) ElectraPix Bar 16 FC (Flight Case)

• (4) ElectraPix Bar 16 IPCB (Charging bases and power supplies)

• (1) UC-IR24 Wireless Infrared Controller

• (1) IP65 Locking Power Cable

ElectraPix Bar 16 Pak Features:

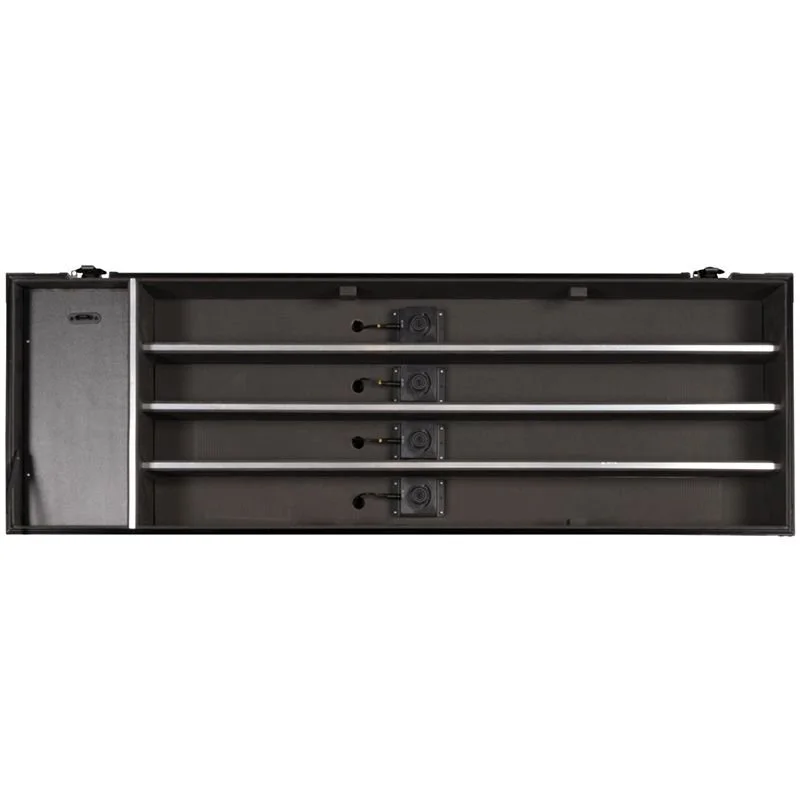

• Houses / Transports and Charges (4) ElectraPix Bar 16 Pak™ fixtures

ElectraPix Bar 16 Pak Dimensions / Weight (loaded case with 4 fixtures):

• Length: 56.8" (1443mm)

• Width: 19.6" (498.4mm)

• Vertical Height: 18.1" (459.9mm)

• Loaded Weight: 192 lbs. (87 kg)

Flight Case Electrical / Thermal:

• Power Input: AC100VAC~240VAC, 50/60Hz

• IP65 Power Locking Input and Output

• Max Power Consumption: 400Watts

• Power Draw: 4A @ 120VAC or 2A @ 230VAC

• Charge status indicator

• 14°F to 113°F (-10°C to 45°C)

ELECTRAPIX BAR 16 FIXTURE SPECIFICATIONS:

Features:

• 16 Pixel, Hex Color LED (RGBAL+UV) LED Bar

• Battery or Wall Powered

• Up to 20 Hour Battery Operation

• Battery Operation (Menu Option)

• Individual Pixel Control

• Built-In Foreground LED Programs

• Built-In Background LED Programs

• Variable White Color Temperature Control (2,300K ~ 9,900K)

• English & Spanish User Menu

• Built-In Alarm

• Color Calibrated LED's

• User Selectable LED Refresh Rates (900Hz ~ 25K)

• 6 User Selectable Dim Modes

• 4 User Selectable Dim Curves

• Electronic Strobe (0.3Hz ~ 11Hz)

• Electronic Dimming

• Attach up to two (2) ElectraPix Bar 16 to the Accu Stand VFB1 vertical floor base

Source:

• (16) 20W Hex Color RGBAL+UV Foreground LEDs

• (66) 0.2W RGB Background LED's

• 50,000 Hour Average Life*

• *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

• 2,300K ~ 9,900K White Color Temperature Range

• 17° Beam Angle

• 45mm Lens Diameter x16

Physical:

• IP65 Housing

• OLED Digital display

• L Track system for locking accessories / rigging

• Glare Shield

• Diffusion Filter slot

• Angle adjustable feet

• Horizontal slide lock to attach additional ElectraPix Bar 16 or ElectraPix Bar 8

Control:

• DMX512

• Aria X2 Wireless Management / DMX System

• Bluetooth

• RDM and RDM Net Compatible

• IR (Includes UCIR24 wireless remote)

• (9) DMX Channel Modes (5, 6, 9,13, 22, 24, 96, 99 & 114 Channel modes)

• On-board Manual Control Mode

• Primary / Secondary Mode

Connections:

• 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

• Outdoor Locking Power Sockets

• Battery Charging Socket

Dimensions & Weight:

• Length: 3.72" (94.5mm) Width: 45.6" (1158. 7mm) Height: 10.6" (268. 7mm)

• Weight: 26.9 lbs. (12.2 kg)

Power:

• AC100-240V/50Hz-60Hz Input

• 90W Power Consumption

• Link 10 pieces @120VAC or 18 pieces @ 230VAC

Battery:

• Rechargeable Lithium ion

• Battery Capacity: 14,000mAh

• Battery Voltage: 22.2V

• Charge Time, AC Power: 5.5 Hours (To Full)

• Charge Time, Flight Case: 5.5 Hours (To Full)

• Up to 20 Hour Battery Operation

• Battery Cycles: 500

Thermal:

• Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

• Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

• CE

• cETLus (Control # 4002034)

• FCC

• IP65

Included Accessories:

• (1) Outdoor Locking Power Cable

• (1) UCIR24 Remote

• (1) 20° Diffusion Filter

Optional Accessories:

• Accu Stand VFB1 (Floor Base)

• LTrack A2 (LTrack Adapter Only)

• LTrack CA2 (LTrack Adapter with Narrow Clamp)

• EPIX B816 IPCB: replacement charging base and power supply
