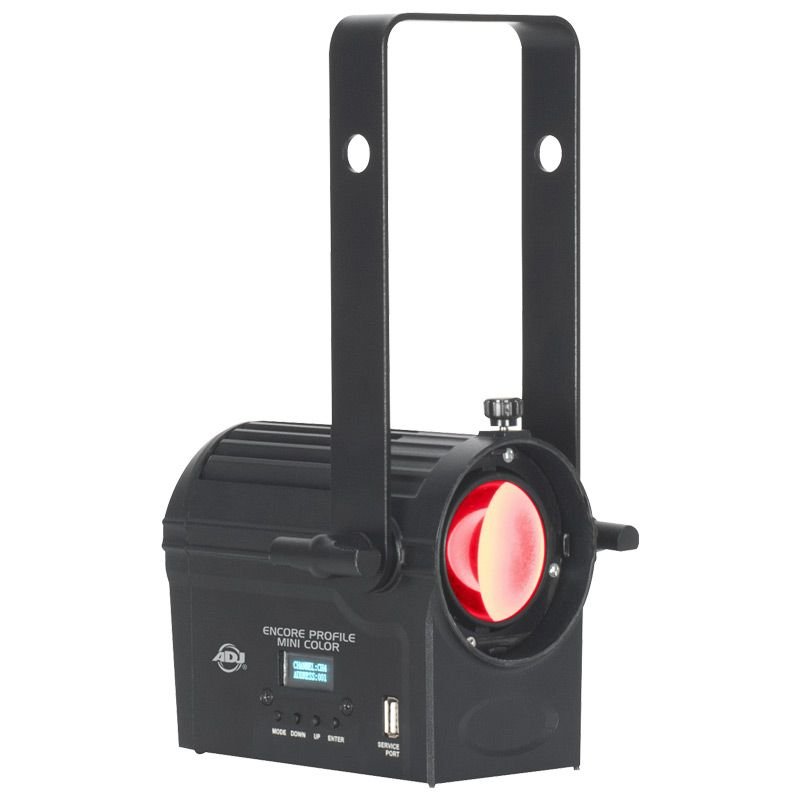

ADJ Encore Profile Mini Color - 16 x 3.5W RGBWAL LED with Manual Zoom Lenses
ADJ Encore Profile Mini Color - 16 x 3.5W RGBWAL LED with Manual Zoom Lenses
Exceptionally compact, yet impressively powerful, the ADJ Lighting Encore Profile Mini Color is a feature-packed color mixing ellipsoidal that is ideal for applications where space is at a premium. It features an LED engine comprised of 16 x 3.5W RGBWAL (red / green / blue / white / amber / lime) LEDs, which offers an output of 300 Lumens and a CRI of >86. For maximum versatility, it can be used with a choice of two manual zoom lens options and is supplied with a holder for “E” size GOBOs. This small, but perfectly formed, luminaire is suitable for a wide range of applications, including small theatres, bar stages, museums, theme park attractions and window displays.
SOURCE:
• 16x3.5W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED Engine (One of the two lens options must be use for the fixture to work properly - See optional accessories below)
• 50,000 Hour Average LED Life (LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
PHOTOMETRIC DATA:
• >86CRI 300 Total Lumens (4,200 CT)
EFFECTS:
• Electronic Strobe and Dimming
• Variable Dimming Curves and Dimming Modes
• Independent dynamic white fader feature that achieves white color temperatures from 2700K to 6500K
GOBOS:
• Metal GOBO Dimensions: Outer Diameter 45mm, Image Diameter 31mm
• Glass GOBO Dimensions: Outer Diameter 39.5mm, Image Diameter 31mm
GOBOs are sold separately
CONTROL / CONNECTIONS:
• (7) DMX Channel Modes (2 / 4 / 5 / 6 / 13 / 14 / 16)
• Adjustable Refresh Rate (900-1500, 25,000 Hz)
• 4 Button Control Panel
• OLED Menu Display
• Locking 5pin XLR Connector In/Out
• IP65 Locking Power In/Out
• With Wired Digital Communication Network
• RDM (Remote Device Management)
• USB Service Port
SIZE / WEIGHT:
•Length: 8.8” (224mm) (NO LENS)
•Width: 5.7” (144mm)
•Vertical Height: 10.9” (276mm)
•Weight: 4.0 lbs. (1.8 kg)
ELECTRICAL / THERMAL:
• Convection Cooling
• AC 100-240V - 50/60Hz
• 55W Max Power Consumption @ 120V
• Power Linking: 28pcs Max @120V / 57pcs Max @230V
• Minimum and Maximum Ambient Temperatures: 14° to 113°F (-10° to 45°C)
APPROVALS / RATINGS:
• CE | cETLus (Control # 4010765) | IP20
INCLUDED ITEMS:
• (1) IP65 Locking Connector to Edison Power Cable
• (1) EP Mini GH (EPG001): Gobo Holder
OPTIONAL ACCESSORIES:
• EP Mini Lens 1530 (15° - 30° Manual Zoom Lens)
• EP Mini Lens 2550 (25° - 50° Manual Zoom Lens)
• EP Mini BDA (EPL153) (Optional Barn Door Assembly)
• EP Mini GH (EPG001) (Replacement Gobo Holder)
• EP Mini Fresnel Lens (EPL166)
• SIP064: 1.64ft. IP65 male to female twist lock power link cable
• SIP113: 3ft. IP65 male to female twist lock power link cable
• SIP126: 5ft. IP65 male to female twist lock power link cable
• SIP139: 10ft. IP65 male to female twist lock power link cable
• SIP152: 16ft. IP65 male to female twist lock power link cable
• SIP165: 25ft. IP65 male to female twist lock power link cable
• SIP178: 50ft. IP65 male to female twist lock power link cable
• SIP191: 100ft. IP65 male to female twist lock power link cable
