ADJ Par Z100 3K2 - 100W Warm White C.O.B. LED Par Can
ADJ Par Z100 3K2 - 100W Warm White C.O.B. LED Par Can
The Par Z100 3K2 combines the aesthetic appeal of a traditional stage par can with the contemporary advantages of LED technology. It runs on a 100-Watt, 3000K Warm White C.O.B. LED engine boasting a CRI exceeding 90. With 5 manually adjustable zoom beam angles, along with DMX In/Out and locking power In/Out, the fixture facilitates the seamless connection of multiple units for permanent or temporary use.
Optical:
• 100-Watt, 3000K Warm White C.O.B. LED (Chip On Board)
• Life expectancy: rated at 50,000 hrs.
• Manual Zoom: 9°, 15°, 20°, 25° or 30°
• Zoom Ratio: 3.3:1
Photometrics:
• 5885 Lux (Zoomed In to 9° @ 5 meters)
• 767 Lux (Zoomed Out to 25° @ 5 meters)
• CRI: >90
Connection:
• DMX: 5-pin DMX In/Out
• With Wired Digital Communication Network
• Locking power In/Out connections
Control:
• DMX-512
• 3 DMX control modes: (1, 3 & 4 Ch. modes)
• RDM and RDM Net Compatible
• Primary/Secondary, stand-alone mode
• On-board manual control mode
Features:
• 4-button DMX menu display on rear panel
• OLED display

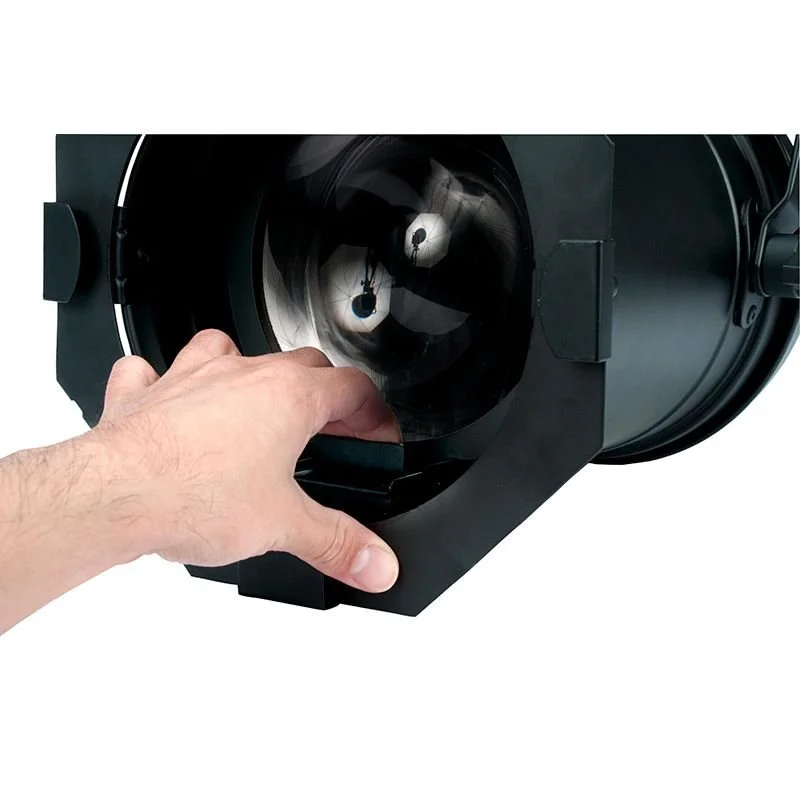

• Adjustable latch to manually change beam angle
• Includes gel frame for diffusion filters (Diffusion filter sold separately)
• Strobe Rate: 0.6Hz to 7.5Hz
• Refresh Rate: 1.2KHz
• Electronic Dimming: 0 - 100%
• 6 Dim Modes
Electrical:
• Power Draw Total (@ Full On): 115W
• Power Consumption: 0.964A @ 120V/60Hz ; 0.5A @ 220V/50Hz
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Daisy chain: 12 fixtures @ 120V; 22 fixtures @ 230V
• Fuse protected: 3A/250V
Ambient Temperature Range (For Use):
• -4° ~ 113°F (-20°C ~ 45°C)
Storage Temperature Range:
• -22° ~ 113°F (-30°C ~ 45°C)
Dimensions / Weight:
• Dimensions (LxWxH): 10.7” x 11.2” x 19.3” / 272.4 x 285.7 x 489mm
• Weight: 8.2lbs. / 3.7kg.
IP Rating / Approvals:
• IP20
• CE & FCC
• ETL Approved (4002034)
Specifications subject to change without notice.
