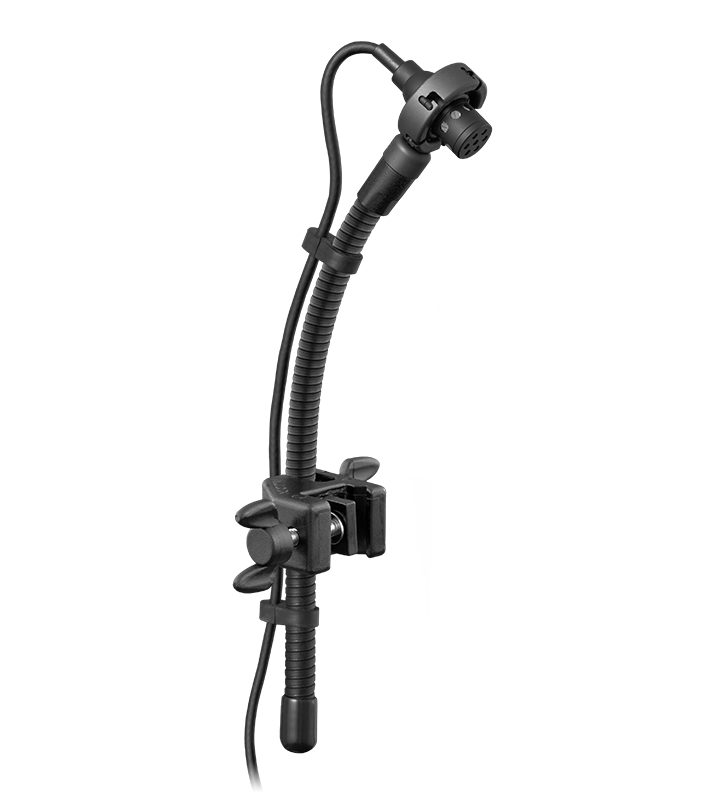

Audix MicroHP Miniature Condenser Instrument Microphone
Audix MicroHP Miniature Condenser Instrument Microphone
MINIATURE CONDENSER LUG-MOUNTED MICROPHONE
The MicroHP condenser instrument microphone is manufactured with a uniformly controlled cardioid polar pattern and provides excellent isolation and feedback control on stage. Used for professional stage and studio applications, the MicroHP is designed with clarity, excellent transient response, resistance to feedback, and high SPL capabilities.
This mic is targeted for hand percussion instruments and drum instrument applications. Housed in an aluminum ring and isolated by means of a rubber shock mount system. The MicroHP attaches to the lug of an instrument via the Audix DCLAMP mounting system.
The MicroHP miniature condenser instrument microphone requires phantom power of 9 – 52 V.
Designed, machined, assembled, and tested by Audix in the USA.
-
Transducer Type Pre-Polarized Condenser
Frequency Response 40 Hz – 20 kHz
Polar Pattern Cardioid
Output Impedance 250 ohms
Sensitivity 6 mV / Pa @ 1k
Equivalent Noise Level 24 dB
Signal to Noise Ratio 70 dB
Maximum SPL ≥140 dB
Power Requirements 9 – 52 V phantom
Connector 3-pin mini to 3-pin XLRm (APS910)
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Machined Brass Capsule / Black Finish
Gooseneck Flexible Steel
Weight 47 g / 1.6 oz
Length 30 mm / 1.14 in
-
1x MicroHP Instrument Microphone
1x 6′ Shielded Cable
1x DCLAMPMICRO(opens a new window) with flexible mini-gooseneck and drum tension lug clamp
1x APS910(opens a new window) 48 V Phantom Power Adapter
1x WS10 External windscreen
1x P1 Carrying Pouch
