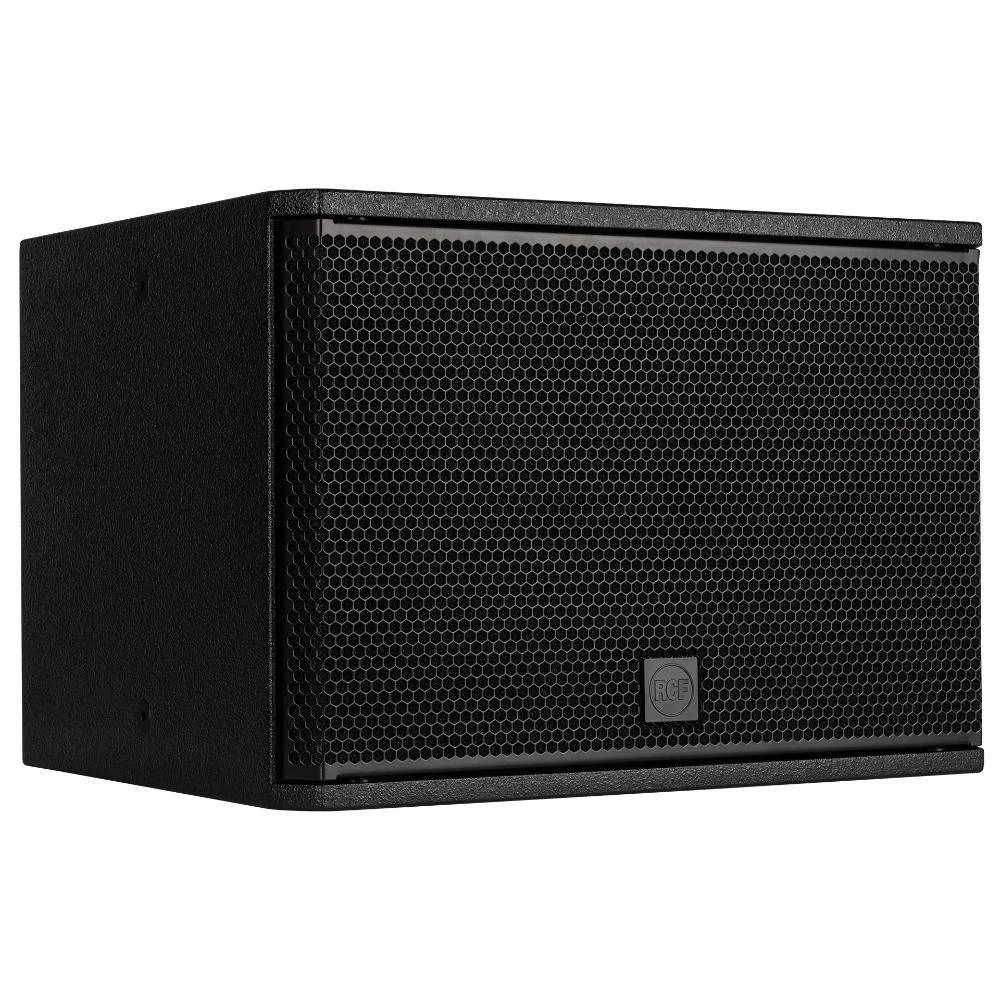

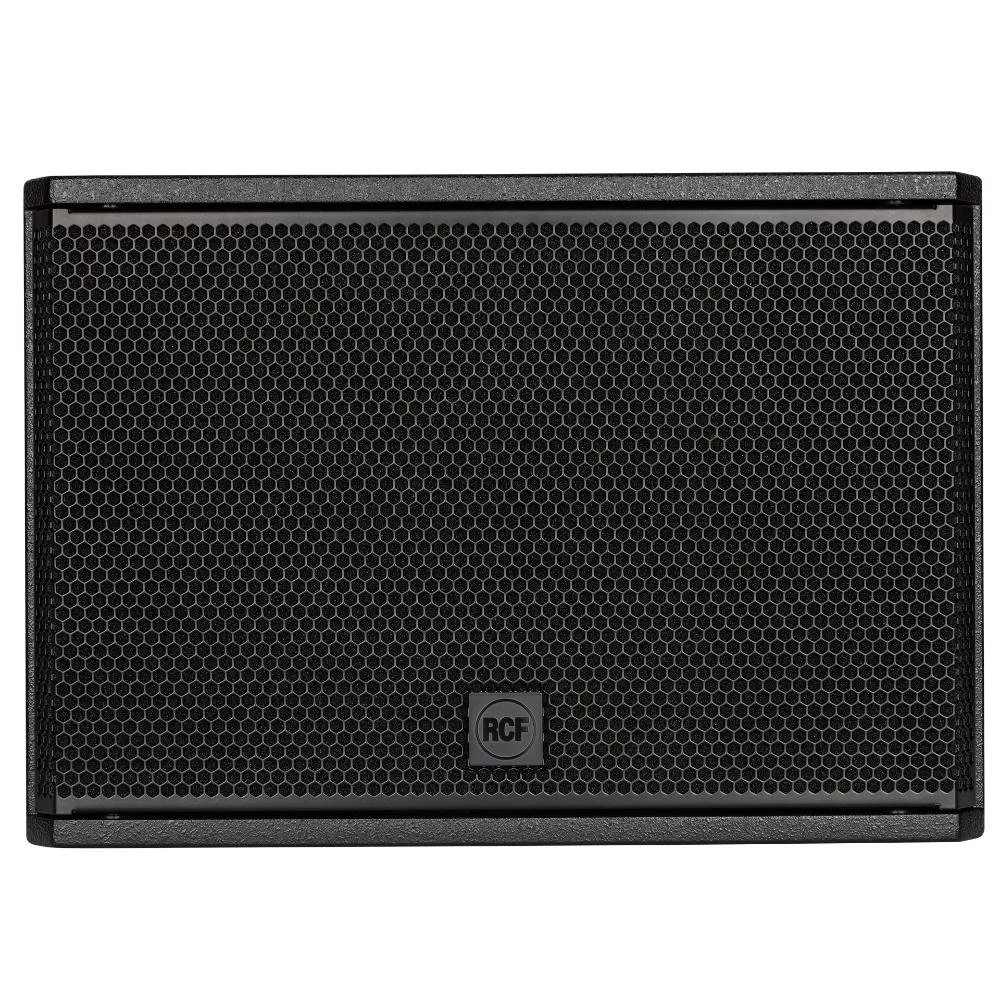

BASS REFLEX SUBWOOFER

• 400 W RMS power handling

• 125 dB max SPL

• 40 ÷ 200 Hz frequency range

• 1 x 12" high power woofer

• High quality plywood cabinet

• Steel front grille with clothing

• M20 standard pole mount in top section of cabinet

• 4 pole EUROBLOCK connector (audio input and parallel link output)

S 12 is a high power, compact subwoofer system ideal for those installations where the physically small size and impact of a 12'' driver are desired. Extending the frequency response of these systems to below 40Hz this highly efficient design is capable of providing output levels normally associated with considerably larger enclosures. A system suited to background music playback in applications ranging from clubs, bars and cafes, right through to theatres and AV presentations. The low-frequency transducer is a 12” woofer with a 2,5” voice coil. Woofer design is the result of the latest refinements in RCF experiences in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range.
