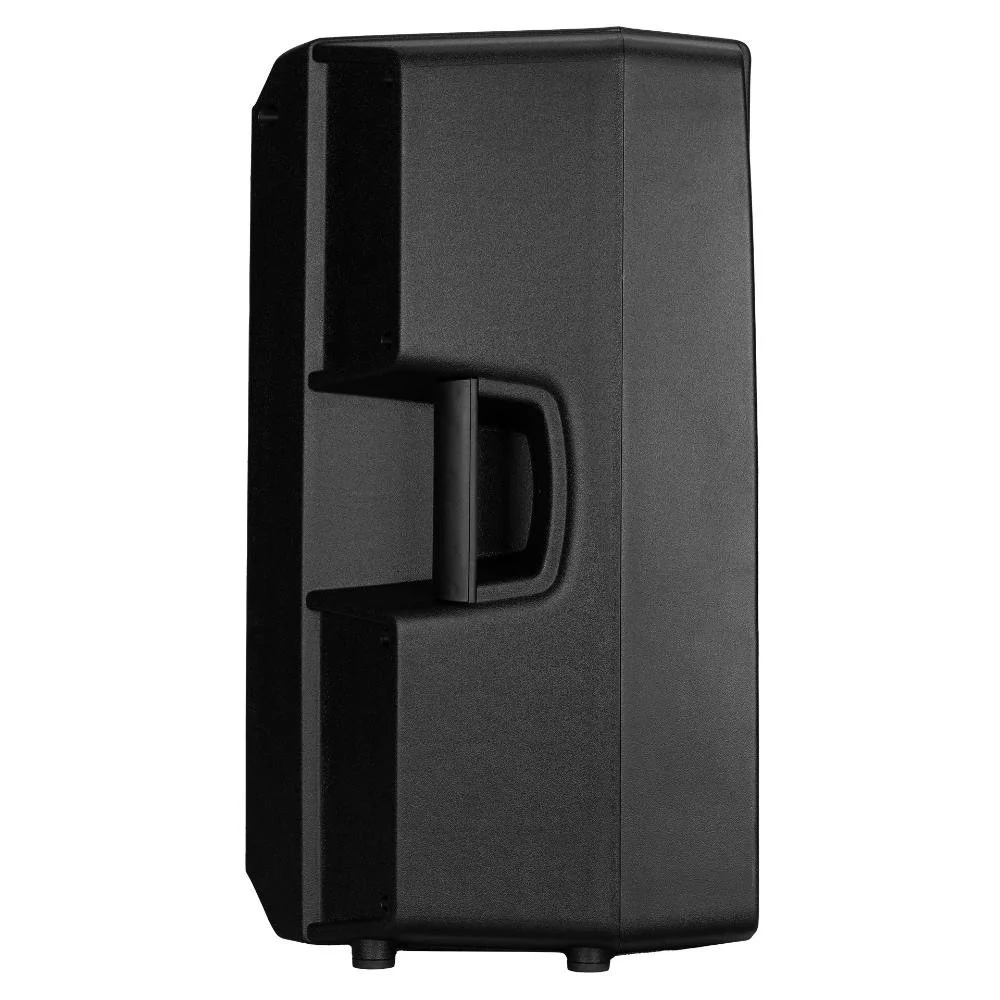

RCF ART 715-A MK5 Active Speaker







RCF ART 715-A MK5 Active Speaker
ACTIVE TWO-WAY SPEAKER
130 dB Max SPL
Two Channel Amplifier of 1400 WATT
Innovative DSP Processing
1" Compression Driver, 1.75" v.c.
15" Woofer
90°x60°, wide dispersion constant directivity horn
FiRPHASE Technology
ART 715-A MK5 is a unique product in its category. The professional compression driver with custom designed dome and high power voice coil offers unique vocal clarity and constant sound coverage. The 15” woofer offers an extremely linear response and a precise low frequency control. The transducers are produced using the most advanced assembly technologies. The two channel amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, phase control, soft limiting and transducers protection.
SPECIFICATIONS
Acoustical specifications. . .
FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
MAX SPL @ 1M: 130 dB
HORIZONTAL COVERAGE ANGLE: 90°
VERTICAL COVERAGE ANGLE: 60°
Transducers . . .
COMPRESSION DRIVER: 1.0'', 1.75'' v.c
WOOFER: 15'', 2.5'' v.c
Input/Output section . . .
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XRL, Jack
OUTPUT CONNECTORS: XLR
INPUT SENSITIVITY: -2 dBu/+4 dBu
MIC. INPUT SENSITIVITY: -32 dBu
Processor section . . .
CROSSOVER FREQUENCIES: 1600 Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Volume, Boost, Mic/Line
Power section . . .
TOTAL POWER: 1400 W Peak, 700 W RMS
HIGH FREQUENCIES: 400 W Peak, 200 W RMS
LOW FREQUENCIES: 1000 W Peak, 500 W RMS
COOLING: Convection
CONNECTIONS: VDE
Standard compliance . . .
CE MARKING: Yes
Physical specifications . . .
CABINET/CASE MATERIAL: PP Composite
HARDWARE: 2 x M10
HANDLES: 1 Top, 2 Side
POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black
Size . . .
HEIGHT: 708 mm / 27.87 inches
WIDTH: 437 mm / 17.2 inches
DEPTH: 389 mm / 15.31 inches
WEIGHT: 19.6 kg / 43.21 lbs
Shipping informations . . .
PACKAGE HEIGHT: 750 mm / 29.53 inches
PACKAGE WIDTH: 500 mm / 19.69 inches
PACKAGE DEPTH: 440 mm / 17.32 inches
PACKAGE WEIGHT: 23 kg / 50.71 lbs
