Features:

• 7 Pixel, Hex Color LED (RGBAL+UV) LED Par

• Built-in Lithium-ion rechargeable battery or Wall Powered

• Battery operation can be selected by the user for durations ranging from 5 to 20 hours

• Individual Pixel Control

• Built-In Foreground LED Programs

• Built-In Background LED Programs

• Variable White Color Temperature Control (2,700K ~ 9,900K)

• English & Spanish User Menu

• Built-In Alarm

• Color Calibrated LED's

• User Selectable LED Refresh Rates (900Hz ~ 25K)

• 6 User Selectable Dim Modes

• 4 User Selectable Dim Curves

• Electronic Strobe (0.3Hz ~ 11Hz)

• Electronic Dimming

Source:

• (7) 20W Hex Color RGBAL+UV Foreground LEDs

• (29) 0.2W RGB Background LEDs

• 50,000 Hour Average Life*

• *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

• 2,300K ~ 9,900K White Color Temperature Range

• 17° Beam Angle

Physical:

• IP65 Housing

• OLED Digital display

• L Track system for locking accessories / rigging

• Gel Frame Holder

• Adjustable, hanging / kick stand bracket

Control:

• DMX512

• Aria X2 Wireless Management / DMX System

• Bluetooth

• RDM and RDM Net Compatible

• IR (Includes UCIR24 wireless remote)

• (9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 42, 45 & 54 Channel modes)

• On-board Manual Control Mode

• Primary / Secondary Mode

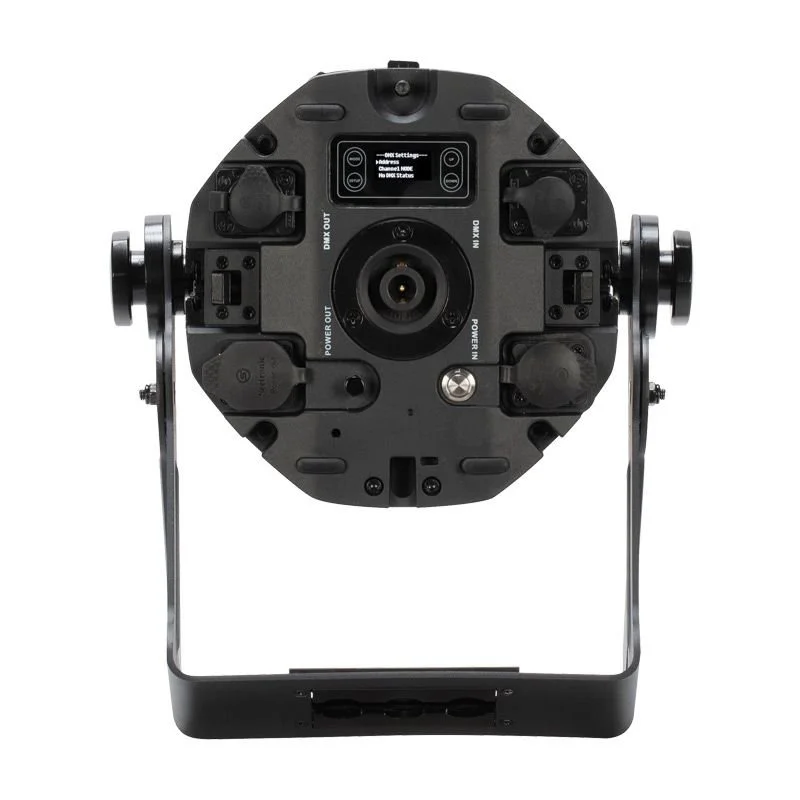

Connections:

• 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

• Outdoor Locking Power Sockets

• Battery Charging Socket

Dimensions & Weight:

• Length: 11.11” (282.1mm) Width: 9.77” (590.3mm) Height: 7.46” (189.5mm)

• Weight: 15.4 lbs. (7 kg)

Power:

• AC100-240V/50Hz-60Hz Input

• 60W Power Consumption

• Link 15 pieces @120VAC or 28 pieces @ 230VAC

Battery:

• Rechargeable Lithium-ion

• Battery Capacity: 7,000mAh

• Battery Voltage: 22.2V

• Charge Time: 6 Hours (To Full)

• Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged

• Battery Cycles: 500

Thermal:

• Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

• Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

• CE

• cETLus (Pending)

• FCC

• IP65

Included Accessories:

• (1) Outdoor Locking Power Cable

• (1) Floor / Mounting Bracket

• (1) UCIR24 Remote

• (1) Gel Frame

• (1) 20° Diffusion Filter

Optional Accessories:

• LTrack A2 (LTrack Adapter Only)

• LTrack CA2 (LTrack Adapter with Narrow Clamp)

• ELP12IPBDA (Barn Door and Gel Frame Assembly, Sku: ELP404)

• ELPIX7L55: 55° diffusion filter for the ElectraPix Par 7

• ELPIX7L40: 40° diffusion filter for the ElectraPix Par 7

• ELPIX7L30: 30° diffusion filter for the ElectraPix Par 7

• ELPIX7L20: 20° diffusion filter for the ElectraPix Par 7

• ELPIX7L30X60: 30x60° linear filter for the ElectraPix Par 7

• ELPIX7L15X60: 15x60° linear filter for the ElectraPix Par 7

• ELPIX7L10X60: 10x60° linear filter for the ElectraPix Par 7

• ELPIX7L10X40: 10x40° linear filter for the ElectraPix Par 7

• EPIX P7 IPCB: replacement charging base and power supply
