ADJ Focus Flex L19 - 19 x 40W LED Moving Head Wash
ADJ Focus Flex L19 - 19 x 40W LED Moving Head Wash
The Focus Flex L19 by ADJ Lighting is a powerful moving head luminaire that offers versatility and creativity to lighting designers. It features 19 40-Watt RGBL color mixing LEDs that can be controlled independently, allowing for a broad range of output colors. The fixture also offers Virtual CMY mode, Virtual Foreground and Background Color Wheel control, and variable color temperature. With motorized zoom and fine pan & tilt motor control, the Focus Flex L19 can create broad washes, concise beams, and impressive aerial effects.
Source:
• 19 x 40-Watt RGBL LEDs (50,000 hr.)
• CRI: 84.2
• TM30 Rf: 84.7
• TM30 Rg: 99.8
• Color Temperature: 2700K ~ 10,000K
• 39,975 lux / 4.3° beam @ 16’ (5m)
• 1,422 lux / 28.3° beam @ 16’ (5m)
• Lumens: 7,814 (Zoomed Out, Full On)
Features:
• Moving Light Pixel Wash
• Individual Pixel Control
• Built-In Pixel Effect Programs
• Aria X2 Wireless Management System
• Electronic Strobe / Dimmer
• Pan/Tilt: 540/630 x 260
• Beam Angle: 4.3° ~ 29°
• Field Angle: 5° ~ 50°
• Color Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Fan Cooled
Colors:
• 19x RGBL LEDs (Red, Green, Blue and Lime)
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Built-In Color Macros

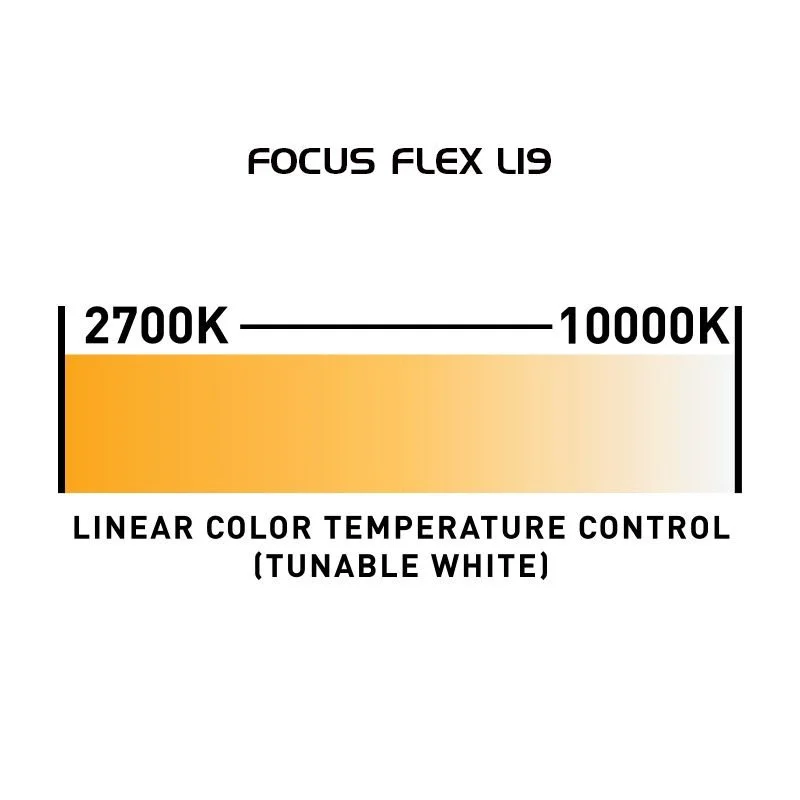

• 2,700K ~ 10,000K Linear White Color Temperature Control
• Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
Control:
• 6 DMX Modes (22, 31, 40, 104, Standard CMY 31, Extended CMY 34)
• Color LCD display with 6-button function menu
• Control: DMX512, ArtNet, sACN, KlingNet and Aria X2 Wireless Management System
• Built-In Effect Pixel Programs with Speed and Fade Control
• RDM (Remote Device Management) compliant
• With Wired Digital Communication Network
Pan/Tilt:
• Pan: 540/630 degrees
• Tilt: 250 degrees
• 16-Bit Fine Pan & Tilt
• Pan & Tilt Locks
Connections:
• DMX Connections: 5-pin XLR In/Out
• RJ45 In/Out
• Power Connections: Indoor Locking Power In/Out
Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 990w
Dimensions & Weight:
• Dimensions (LxWxH): 10.16”L x 15.04”W x 18.51”H (258x382x470mm)
• Weight: 42lbs (19kg)
What’s Included:
• 180mm Omega Brackets (2x)
• 1.83M locking power cable
• Safety Cable
Approvals / Rating:
cETLus Approved
CE Certified
IP20
Specifications subject to change without notice
UPC: 810087371500
