ADJ Focus Spot 2X - 100W LED Moving Head
ADJ Focus Spot 2X - 100W LED Moving Head
The ADJ Focus Spot 2X is a 100W LED Moving Head with a 3W UV LED included. It features two prism effects (6-facet circular prism and 6-facet linear prism), 6 rotating, replaceable Gobos + Spot, 8 colors + spot & split colors and an easy to replace GOBO system.
Light Source:
• 1 x 100W Cold White LED (7600˚K, 50,000 hr.)
• 1 x 3W UV LED
Features:
• Motorized Focus
• Manual Zoom knob on head: 16 ~ 19 degree beam angle
• Fan cooled
• Strobe/Pulse effect; random strobe slow to fast
• UC IR & Airstream IR Compatible (Sold Separately)

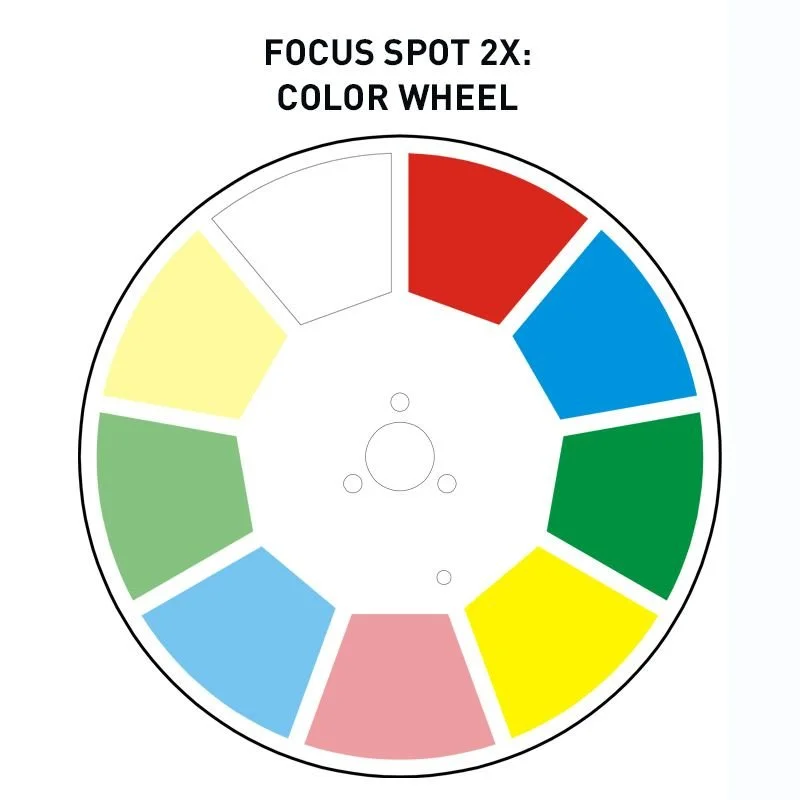

Color Wheel:
• 8 Colors + White & Split Colors
GOBO Wheel:
• 6 Rotating, replaceable Gobos + Spot
• Gobo Size: Outer: 23mm/Inner:19mm/Thickness: 0.5mm
• Gobo Indexing
• EZ Gobo replacement with hinged head cover
• Gobo Shake effect
Prism Wheel:
• 6-facet circular prism
• 6-facet linear prism
Control:
• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
• Primary/Secondary
• 4 Built-in lighting shows
• 16 & 18 DMX channel modes
• Electronic Dimming: 0% - 100%
• 5 Dimmer Curves
• 4-Button DMX LED menu
• Stepper motors with micro stepping
• With Wired Digital Communication Network
Connections:
• 3-pin DMX In/Out
• Twist locking power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X’s @ 120V and 16 Focus Spot 2X’s @ 230V)
Pan/Tilt:
• Fast and precise Pan/Tilt Movements
• 16-Bit Fine Pan/Tilt control
• Pan: 540-degree
• Tilt: 270-degree
• Pan/Tilt Invert Mode
• 4, Built-In, Pan/Tilt Target Modes
Electrical:
• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Consumption: 180W
Dimensions / Weight:
• Dimensions (LxWxH): 9.3” x 6.8” x 15.2”/ 237 x 175 x 385mm
• Weight: 14.5 lbs. / 6.5 kgs.
What’s Included:
• Includes Omega bracket for truss mounting
• Includes power cable
Approvals:
• CE | cETLus Approved (Control #4010765)
