Light Source:

• 200W Cool White LED Engine (50,000 hr.)

Features:

• Motorized Focus

• 2 Frost Filters to create wash effects

• Motorized Zoom: 11 ~ 22-degrees

• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• 2 cooling fans

Color Wheels:

• 8 dichroic colors + white on two separate wheels (includes CTO, CTB and UV filters)

GOBO Wheels:

• 6 Gobos (5 aluminum GOBOs, 1 glass GOBO) + open

• All GOBOs are removable & rotatable

• GOBO Shake Effect

• Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

• Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

Prism Wheel:

• Prism Wheel 1: Rotatable 6-facet Circular

• Prism Wheel 2: Rotatable 5-facet Linear

• Each Prism is indexable

Frost Filters:

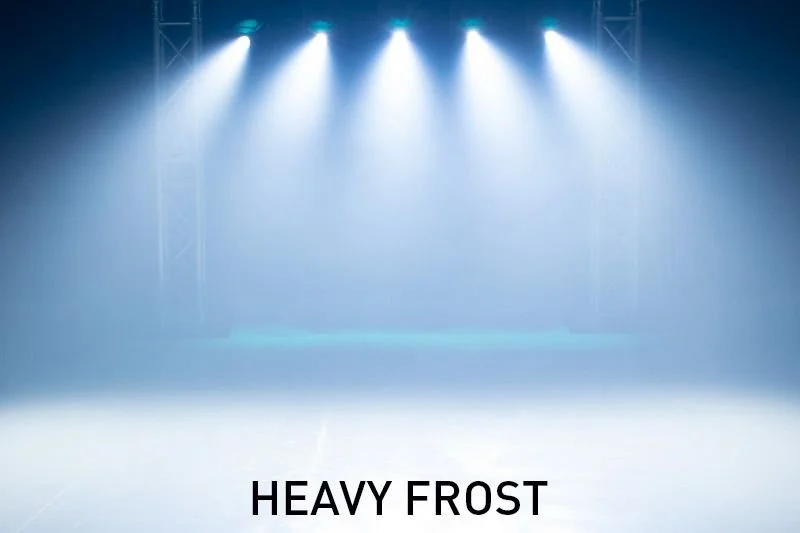

• Frost 1: Heavy frost for wash effect

• Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX

Control:

• 3 DMX Channel Modes: 19/22/26

• Color LCD display with 6-button function menu

• Control Mode: DMX512 or internal programs

• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• With Wired Digital Communication Network

• RDM (Remote Device Management)

Pan/Tilt:

• Pan: 630 degrees

• Tilt: 270 degrees

Connections:

• DMX Connections: 5-pin XLR In/Out

• Power Connections: PowerLock In/Out to daisy chain power

Electrical:

• Multi-voltage operation: 90-240V, 50/60Hz

• Max power consumption: 280W

Dimensions & Weight:

• Dimensions: 7.15” (L) x 10.97” (W) x 18” (H) (181.5 x 278.61 x 457.4mm)

• Weight: 23 lbs. / 10 kg.

What’s Included:

• Omega Bracket

• 1.83M locking power cable

Optional Road Cases:

• DRC MH: 2 Focus Spot 5Z fit in the DRC MH Road Case

• QRC MH: 4 Focus Spot 5Z fit in the QRC MH Road Case

Approvals / Rating:

ETL Approved / CE Certified
