SOURCE:

• Osram SIRIUS HRI 420W Dishcharge Lamp

• Full Power (420W)

• Up to 2,500 Hour Lamp Life

**Test lab conditions. May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA:

• Lumens: Beam Mode:12,319, Spot Mode:14,416

• Lux: Beam Mode:562,600, Spot Mode:223,200 (@5m, zoomed out

• CRI: 77 +/- 5

• Correlate color temperature: 6500K +/- 300K

• Zoom Range: Beam Mode: 1.6°-17.7° / Spot Mode: 3.1°-39.2°

EFFECTS

• Beam, Spot and Wash

• Motorized Zoom

• Frost Filter (Heavy)

• Animation Wheel

• 2 Prisms on Dual Planes, 8-facet circular / 6-facet linear

• CMY/Color Macros

• Gobo/Prism Macros

• Motorized Focus

• High Speed Shutter and Strobe

• Pan Degree: 540°/630°

• Tilt Degree: 270°

COLOR:

• Full CMY Color Mixing System

• White Color Temp Presets

• 12 Position Color Wheel (Including: UV + CTO: 2700K, 3200K, 4000K)

• 27 Color Macros (Color Wheel + CMY)

GOBOS:

• 2 Gobo Wheels

• GOBO Wheel 1: 9 Interchangeable-Rotating / Indexing Glass Black & White Gobos

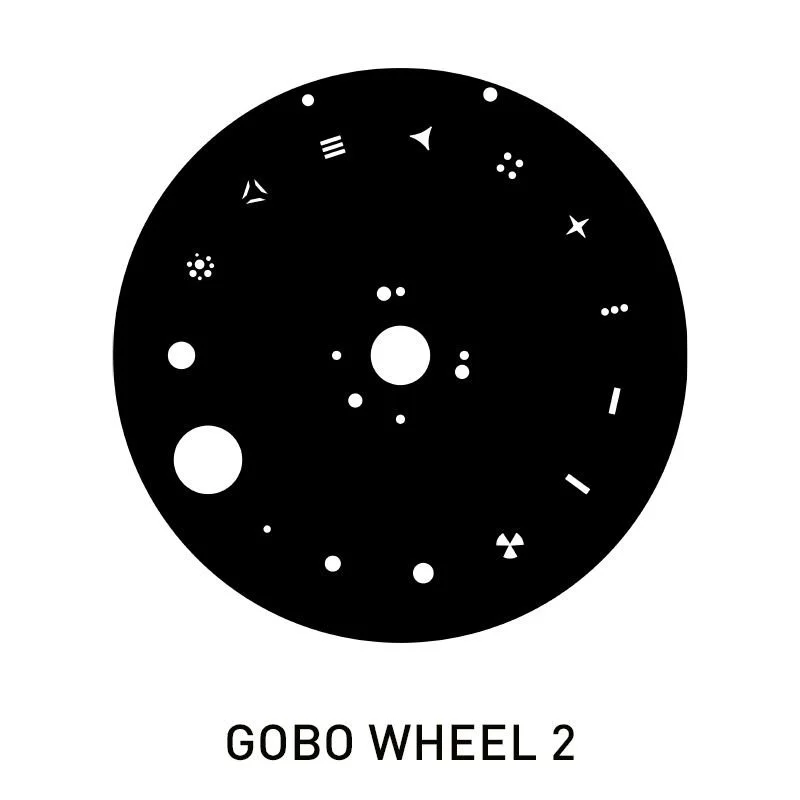

• GOBO Wheel 2: 14 Static-Stamped Metal Gobos (Including 4 beam reducers)

CONTROL / PHYSICAL:

• DMX and RDM Protocols

• 3 DMX Channel Modes (24, 28 & 32)

• 1 User Assignable DMX Channel Mode

• Aria X2 Wireless Management / DMX System

• (4) Button Touch Panel

• Full Color 180° Reversible LCD Menu Display

• Outdoor, IP66 5pin DMX In/Out

• Outdoor, IP66 Locking Power In/Out

• Pan/Tilt Locks

SIZE / WEIGHT:

• Length: 11.4” (290mm)

• Width: 16.31” (414.27mm)

• Height: 29.17” (741mm)

• Weight: 69.7 lbs. (31.6 kg)

ELECTRICAL / THERMAL:

v AC 100-240V 50/60Hz

• 580W Max Power Consumption

• -4° to 113°F (-20°C to 45°C)

• Min/Max Ambient Temperature: -20ºC ~ 45ºC

APPROVALS / RATINGS:

• CE

• cETLus (Pending)

• IP65

Specifications and documentation subject to change without notice.
