SPECIFICATIONS:

• Pixel Pitch: 3.91mm (0.15”)

• LED Configuration: 3-in-1 SMD2121 LED

• Pixel Density: 128x128; 65536 per square meter

• Size :19.68” x 19.68” x 2.74” / 500 x 500 x 69.6mm

• Module Quantity: 4

• Weight: 17 lbs. / 7.7kg.

FEATURES:

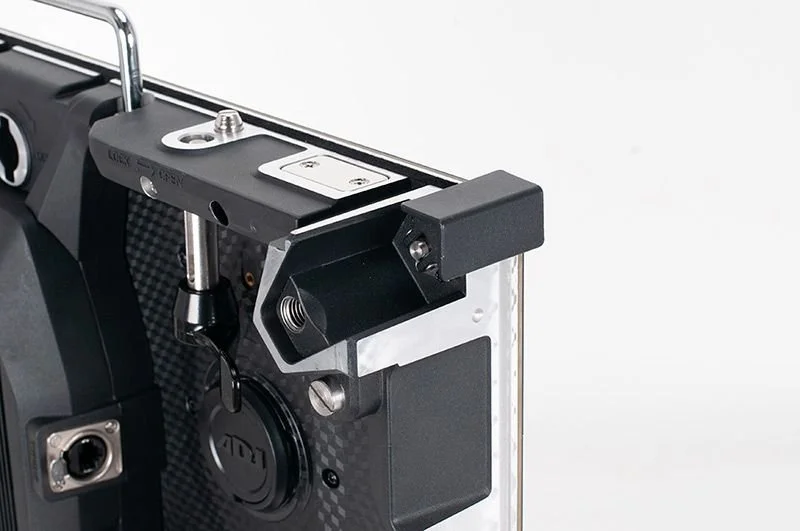

• Corner Protectors to protect the corners of the VS3 during transport, set-up and teardown

• Front and rear serviceable: 4 easy to replace video modules on each panel

• Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall

MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm

OPTICAL RATINGS:

• Brightness: 1000 NITS

• View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)

• Gray Scale: ≥14-bit

• Display Color: 256

• Brightness Adjustment: 0~100% 100 Levels

• Contrast ratio: 5000:1

• Processing: 14-bit

POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 170W/per panel

• Ave. Power Consumption: 68W/per panel

• Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out

CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-75Hz

• Scan Mode: 1/16

• Refresh Rate: 3840Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <120m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:

• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

• Operating Life / MTBF: 50,000 Hours / 5,000 Hours

• Protection Level: IP20 (Front and Back)

• Out of Control Rate: <0.02%

OPTIONAL ACCESSORIES FOR VS2, VS3 & VS5 VIDEO PANELS:

• VSFC8 (VS8100): Flight Case – Fits 8 Vision Series Video Panels

• VSRB1 (VS1100): Rigging Bar – Hang up to 20 Vision Series Video Panels vertically

• VSMRT (VSM111): Module Removal tool - Magnetically assists the tech in removing modules from the front side when servicing.

• VSRQR (VSM210): Quick Rig - Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2" pipe or truss

• VS1RSB (VS1126) Rear Support Bracket for VS Series Panels

• VSSCSB VSSCSB): Single Column Support Base

• VSGSB (VSG100): Ground Support Base

• VSGSLT (VSGSLT): Ground Support Ladder Truss

• VSGSCSB (VSG155): Clamp Support Bar

• Novastar VX4S: Video Processor

• Novastar MCTRL-300: Video Processor

• Novastar Nova Pro HD: Video Processor

• Arkaos Media Master: Video Software

• Arkaos GrandVJ 2.0: Video Software

CABLES:

• Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)

• Power Locking Link Cables

• Power Locking Main Power Cables

CERTIFICATIONS:

• cETLus approved (Control #5015975)

This product was developed for temporary use only! It should not be permanently installed.

UPC: 818651027990
