SPECIFICATIONS:

• Pixel Pitch: 3.84mm (0.15”)

• LED Configuration: 3-in-1 SMD1921 LED

• Pixel Density: 150x150 per panel; 67816 per square meter

• Size: 22.7” x 22.7” x 3.00” / 576mm x 576mm x 75mm

• Module Quantity: 4

• Weight: 19.84 lbs. / 9kg.

FEATURES:

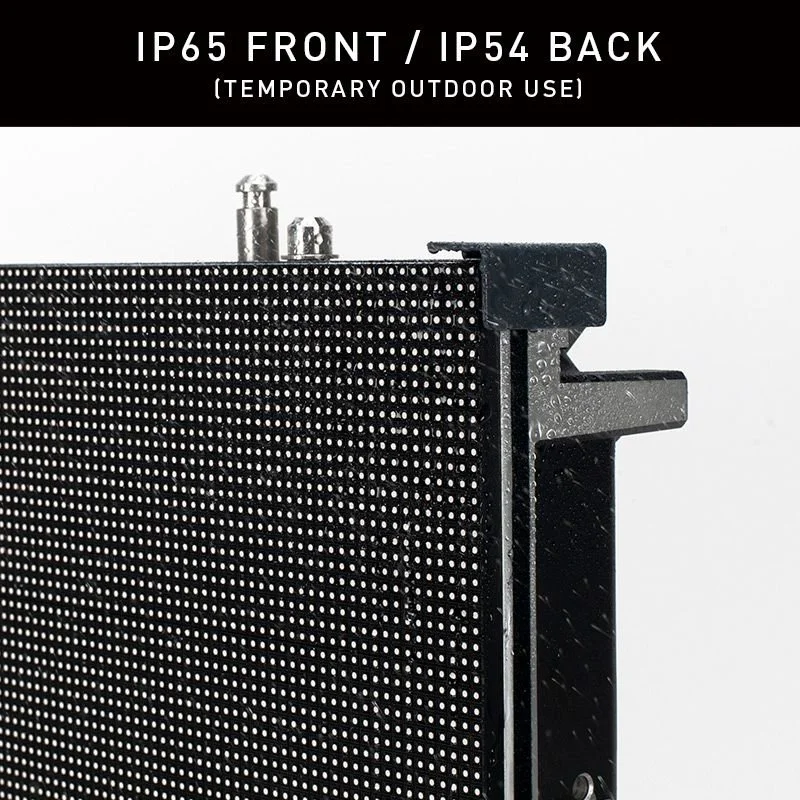

• IP65 Front / IP54 Back (Temporary outdoor use)

• Corner Protectors to protect the corners of the VS3IP

  during transport, set-up and teardown

• IP65 rated rubber capped protective connections

• 4 easy to replace video modules on each panel

• Rear carry handles

• Curve panels in convex or concave -6, -3 degrees or 0,

  +3, +6 degrees

• Quick lock system to connect panels together

• Quick release power supply / receiving card module

• Novastar A5S receiving card

MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm

OPTICAL RATINGS:

• Brightness: 4500 NITS

• View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)

• Gray Scale: ≥14-bit

• Display Color: 256

• Brightness Adjustment: 0~100% 100 Levels

• Contrast ratio: 5000:1

• Processing: 14-bit

POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 210W/per panel

• Ave. Power Consumption: 84W/per panel

• IP65 Rated Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out

CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-75Hz

• Scan Mode: 1/15

• Refresh Rate: 3840Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <120m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:

• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

• Operating Life / MTBF: 50,000 Hours / 5,000 Hours

• Protection Level: IP65 Front / IP54 Back

• Out of Control Rate: <0.02%

OPTIONAL ACCESSORIES:

• VS3IPFC8 (VS3134): Flight Case – Fits 8 VS3IP Panels

• VS3IPRB1 (VS3111): Rigging Bar – Hang up to 20 VS3IP Video Panels vertically or ground stack up to 8

• VSRQR (VSM210): Quick Rig - Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2" pipe or truss

• VS1RSB (VS1126) Rear Support Bracket for VS Series Panels

• Novastar VX4S: Video Processor

• Novastar MCTRL-300: Video Processor

• Novastar Nova Pro HD: Video Processor

• Arkaos Media Master: Video Software

• Arkaos GrandVJ 2.0: Video Software

CABLES:

• Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)

• Power Locking Link Cables

• Power Locking Main Power Cables

CERTIFICATIONS:

• cETLus Approved (Control #5015975)

• CE Approved

• Fcc Approved

This product was developed for temporary use only! It should not be permanently installed.

UPC: 818651029093
