ADJ Encore LB15IP - 15 x 20W RGBL IP65 LED Wash Fixture
ADJ Encore LB15IP - 15 x 20W RGBL IP65 LED Wash Fixture

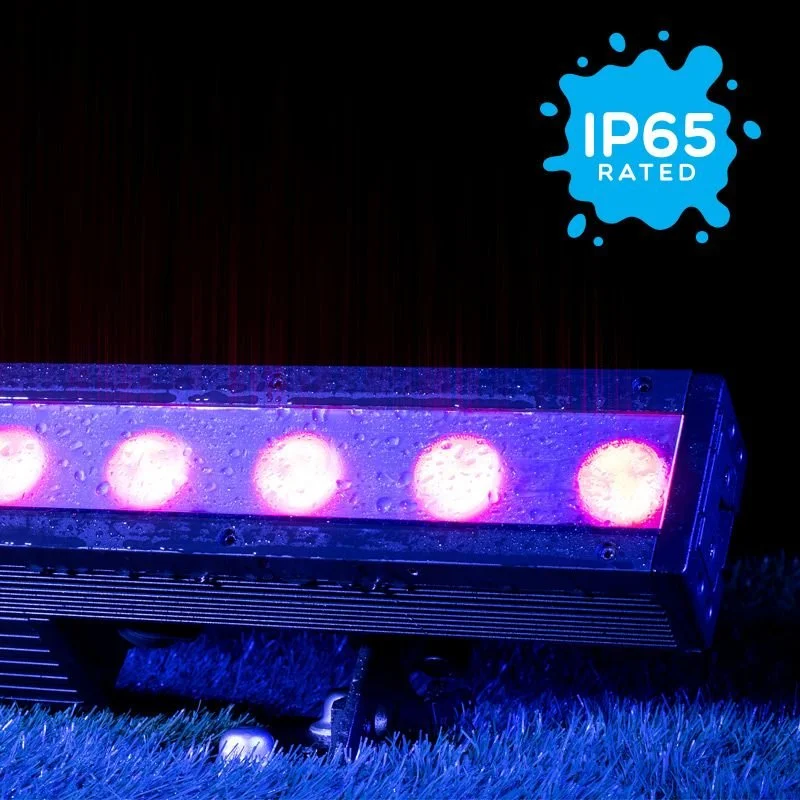

Offering a tough metal construction and IP65 ‘weatherproof’ rating, the Encore LB15IP is a linear LED wash fixture designed for rental, event production and concert production applications. It features 15 x 20-Watt quad color RGBL (Red, Green, Blue and Lime) LEDs which offer a huge variety of color options, including white light with a variable color temperature of 2700K to 7000K, and a high CRI. Each of the LEDs can be controlled independently and has a tight beam angle of 11-degrees with the option to change the beam to 25-degrees with the supplied frost filter.
SOURCE:
• 15 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
PHOTMETRIC DATA:
• Beam angle: 11° (25˚ with diffusion filter attached)
• CRI: 89.3
• CRI R9: 69
• Lumens: 5982
• Linear Color Temperature Control (2700K to 7000K)
• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K, 6500K and 7000K)
EFFECTS:
• Individual Pixel Controllable
• 16-Bit Fine Color Control (Red, Green, Blue & Lime)
• 64 built-in Color Macros
CONTROL / CONNECTIONS:
• 4-button, DMX digital display on rear panel
• 4 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
• Supports RDM (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 10 DMX Modes: 4, 7, 8, 13, 16, 60, 63, 69, 72 & 120 channel
• Adjustable fan modes
• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight). Also compatible with Aria X2 Transceivers for 2.4Ghz Wireless DMX control.
CONSTRUCTION:
• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All metal construction
• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
• Locking, outdoor IN/Out Power connectors
• Data linkable via 5-pin DMX connections
ELECTRICAL / THERMAL:
• Multi-voltage operation: AC 100-240V, 47/63Hz
• Daisy chain: 5 @ 120V, 10 @ 220V
• Max power: 198W
• Min/Max Ambient Temperature: -20ºC ~ 45ºC
DIMENSIONS / WEIGHT:
• Dimensions (LxWxH) 5.99” x 36.0” x 8.33” / 152x915x211.55mm
• Weight: 19.5 lbs. / 8.85 kg.
APPROVALS / RATINGS:
• cETLus Pending
• IP65
INCLUDED ACCESSORIES:
• Glare Shield
• 25-Degree Frost Filter
• 2x Omega Brackets
• Locking Outdoor Power Cord
OPTIONAL ACCESSORIES:
• ELB15L20: 20° frost filter for Encore LB15IP
• ELB15L60: 60° frost filter for Encore LB15IP
• ELB15L100: 100° frost filter for Encore LB15IP
*Specifications are subject to change without notice.
