ADJ Encore LP12IP - 12 x 20W LED IP 65 Wash Fixture
ADJ Encore LP12IP - 12 x 20W LED IP 65 Wash Fixture
The ADJ Encore LP12IP is a versatile, heavy duty Par with twelve (12) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10° beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white color temperature control from 2700K - 7000K. A removable 25-degree frost filter is included.
SOURCE:
• Light Source: 12 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
PHOTMETRIC DATA:
• Beam angle: 10° (Includes removable 25° frost filter)
• CRI: 84.4
• CRI R9: 67.9
• Lumens: 4700
EFFECTS:
• Linear Color Temperature Control (2700K to 7000K)

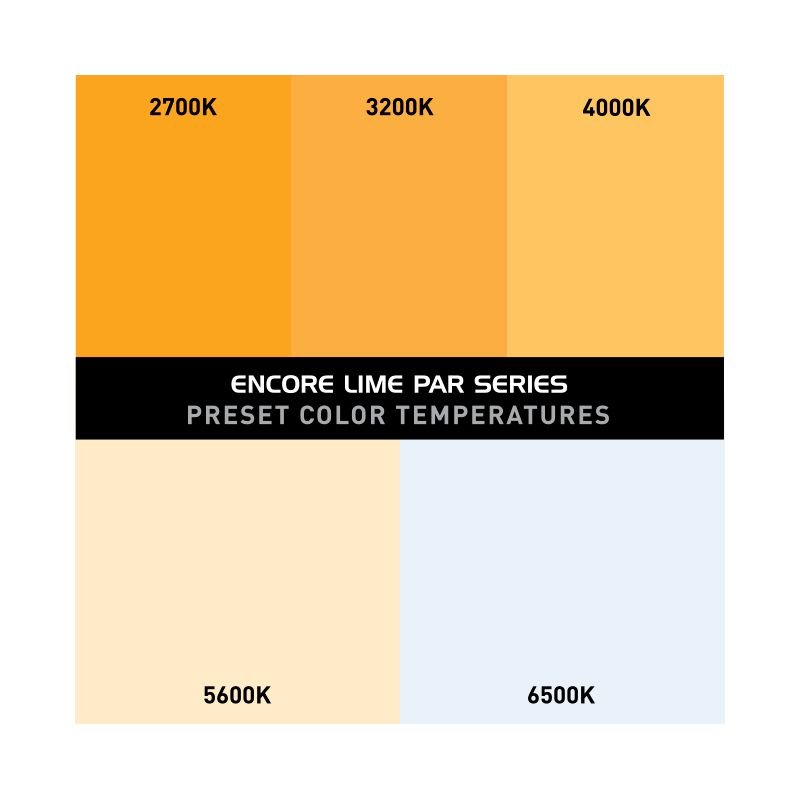

• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
• 16-Bit Fine Color Control (Red, Green, Blue & Lime)
• 64 built-in Color Macros
CONTROL / CONNECTIONS:
• 4-button, DMX digital display on rear panel
• Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
• Supports RDM (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 6 DMX Modes: 4, 7, 8, 10, 13 & 16-channel
• Quiet fan mode
CONSTRUCTION:
• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All metal construction
• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
• Locking, outdoor IN/Out Power connectors
• Data linkable via 5-pin XLR DMX connections
• Scissor Yoke & safety eye
ELECTRICAL / THERMAL:
• Multi-voltage operation: AC 100-240V, 47/63Hz
• Daisy chain: 6 @ 120V, 12 @ 220V
• Max power: 192W
• Min/Max Ambient Temperature: -20ºC ~ 45ºC
DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 7.9” x 11.8” x 11.1” / 199.5x300.0x281.2mm
• Weight: 12.8 lbs. / 5.80 kg.
APPROVALS / RATINGS:
• cETLus (Control #4010765)
• IP65
INCLUDED ACCESSORIES:
(1) 25° Frost Filter
(1) Power Cord
OPTIONAL ACCESSORIES:
ELP12L100: 100° frost filter for the Encore LP12IP
ELP12L60: 60° frost filter for the Encore LP12IP
ELP12L30X60: 30x60° frost filter for the Encore LP12IP
ELP12L1X40: 1x40° frost filter for the Encore LP12IP
ELP12L20: 20° frost filter for the Encore LP12IP
Z-8050000053: 107mm Omega Bracket
ELP12IPBDA: Barn Door / Gel Frame Kit
