ADJ Vizi Beam 12RX - 260W Moving Head Beam
ADJ Vizi Beam 12RX - 260W Moving Head Beam
The Vizi Beam 12RX is the next generation beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.). Includes: 2 Prism FX, Frost Filter, Motorized Focus, 14 dichroic colors + white, 16 static GOBOs + open and a razor sharp 2-degree beam angle.
Light Source:

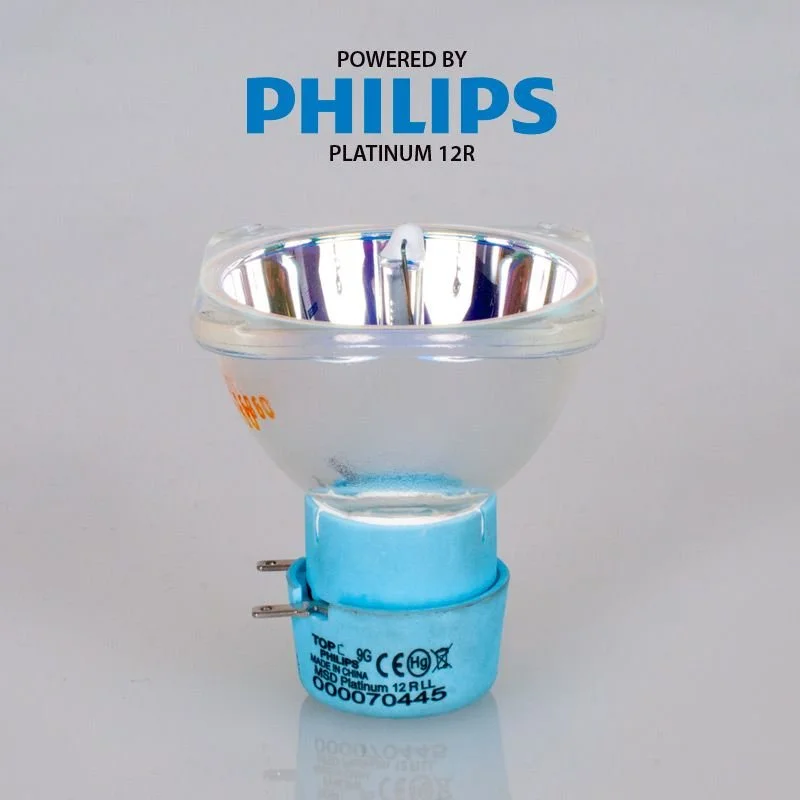

• 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.)
• Color temperature: 7800K
Features:
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms: 6-facet Linear and 24-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• Fan cooled
Color Wheel:
• 14 dichroic colors + white (Includes CTO, CTB & UV)
• Indexable color wheel for split colors
GOBO Wheel:
• 16 static GOBOs + open (4 GOBOs are beam reducers)
• GOBO Shake Effect
Prism Wheel:
• Rotating, 6-facet linear and 24-facet circular
Control:
• 2 DMX Channel Modes: 14/16 Channels
• Color LCD display with 4-button function menu
• Control Mode: DMX512, RDM control options
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
Pan/Tilt:
• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)
Connections:
• DMX Connections: 3-pin & 5-pin DMX In/Out (Data link max: 32 fixtures)
• Power Connections: IP65 rated power locking In/Out connections to daisy chain power
Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 384W (@120V), 371W (@230V)
Dimensions & Weight:
• Dimension: 13.8” (L) x 13.5” (W) x 22.25” (H) / 350 x 343.5 x 565mm
• Weight: 39.7 lbs. / 18 kg.
What’s Included:
• Omega Brackets
• 1.83M locking power cable
Approvals / Ratings
• cETLus Approved (Control #4000358)
• CE Certified
Road Case:
• Two (2) Vizi Beam 12RX fit in the ADJ DRC MHX road case
UPC: 818651028218
